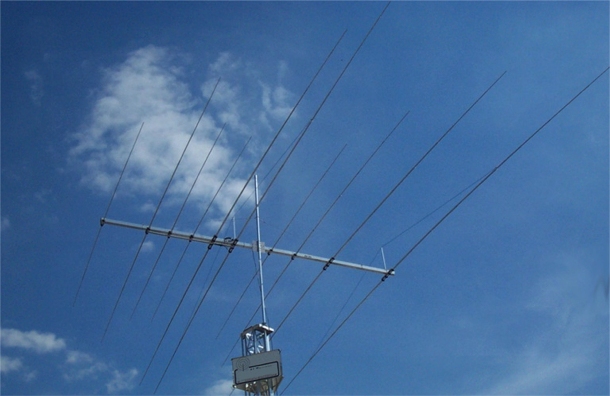

UNHCR 5 Band 10-21 MHZ
customized 10 element fiveband-Yagi United Nations
!!! the Yagi can be adapted to specific client’s requirements !!!
| Frequency range | 5 spot frequencies in the range 10-21 MHZ | |
| Gain (dBd) | 4,2 - 5,3 | |
| Gain (dBi free space) | 6,35 - 7,45 | |
| F/B (dB) | 11 - 25 | |
| SWR | < 1,8 | |
| Elements (number) | 10 | |
| Active Elements per frequency | 2 - 3 | |
| Max. Elementlength (m) | 15,88 | |
| Boomlength (m) | 7,10 | |
| Turning Radius (m) | 8,65 | |
| Feedlines (number) | 1 coax 50 Ohm | |
| Weight (kg) | 70 | |
| Windload at 130 km/h | 1.650 N / 2,1 m² / 22,58 feet² |
